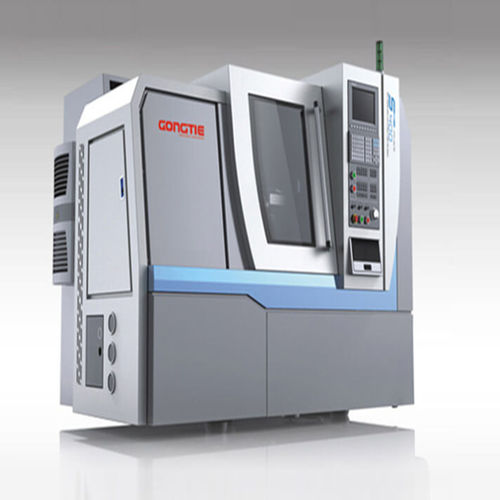

CNC lathe TCK45L

horizontal2-axisuniversal

High precision: importing components from Japan and Taiwan through the advanced assembly and inspection technology, realizing the  precise turning with tolerance of  μ level. High speed: more than 5000RPM for spindle ,rapid traverse 20m/min, to reach the high speed machining.  High efficiency: with the concept of technique innovation and application oriented, and sustainability improve the overall performance, to make the processing more efficiency. High Stability: high quality requirement  and strict selecting for all the components, to make the machine performance more stable. TOM - TCK45 - L TOM-TCK45L - A 2 - 8 max swing diameter over bed Φ560 Φ560 max cutting diameter Φ450 Φ450 max processing diameter over tool post Φ210 Φ210 max processing length 500 ( 8″ ) 450 spindle nose type A2-6（ 8″ ） A2-8（ 10″ ） recommended spindle motor power 11-15 KW 15-18 KW max spindle speed 4200 rpm 2500 rpm spindle hole diameter Φ66 Φ87 bar-through hole diameter Φ52 Φ72
