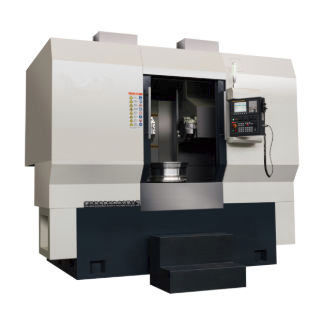

Wheel lathe LV24WT

CNCvertical

Overall: Adopt the overall structure of the bed, the bed surface and vertical direction tilt 90°, the protection adopts the frame type appearance fully closed structure, the double inner sliding door opens to both sides, the control console is fixed on the right end fixed protective cover, the iron chip box (water tank) is standard with the rear side row, the cutting machine adopts the double chain plate cutting structure. The hydraulic station of the machine is located at the back of the machine, and the lubricating pump is fixed at the right. A foot switch is provided in front of the machine to control the clamping and loosening of hydraulic chuck. The whole machine is stable, beautiful in shape, easy to operate and reasonable in layout. Spindle: The main drive system is driven by a high-performance servo motor. The pulley drives the spindle to rotate. The spindle has a speed range of 0-2500r/min, a constant torque range of 0-1000r/min and a constant power range of 1000-5000r/min. The spindle of the machine tool adopts the sleeve type integral spindle, the front end of the spindle adopts the double row cylindrical roller bearing and the back end of the high speed angular contact ball bearing adopts the double row cylindrical roller bearing to support, which can fully meet the bearing requirements of axial and radial cutting forces. Tool rest: Adopt the high reliability import custom wheel hub special hydraulic tool set, left and right one, the tool change speed is fast, the reliability is high. Drive: Adopt imported high-precision ball screw, high positioning accuracy and repeatable positioning accuracy.
