CNC lathe
vertical2-axisheavy-duty

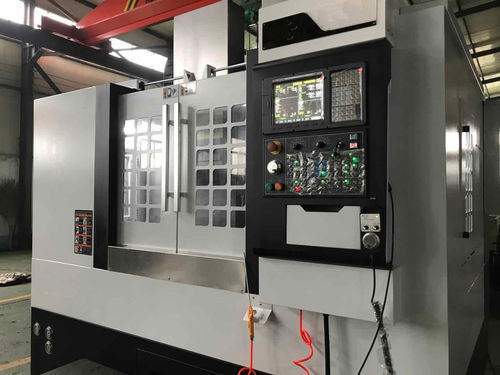

CNC lathe - Ningbo gongtie smart technology co., ltd. - vertical / 2-axis / heavy-duty
CNC lathe - Ningbo gongtie smart technology co., ltd. - vertical / 2-axis / heavy-duty
CNC lathe - Ningbo gongtie smart technology co., ltd. - vertical / 2-axis / heavy-duty - image - 2
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
vertical
Number of axes
2-axis
Applications
heavy-duty, for large parts, brake drum, for brake discs, for wheels, for brake disk facing
Diameter

Max.: 1,400 mm
(55.12 in)

Min.: 0 mm
(0 in)

Spindle speed

Max.: 500 rpm
(3,141.593 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

The machine is a kind of automatic cnc control machine tool, used for processing parts inside and outside of the cylinder, cone surface and face, cutting and chamfering, especially suitable for all kinds of flange and various kinds of brake hub, wheel drum, clutch pressure plate type, flywheel shell and other parts processing, not only can easily satisfy the general components of turning processing, can also be equipped with double functions of the brake disc double-sided processing modular design at the same time, more extensive application fields. Max. swing diameter over bed :1400mm Max. turning diameter :1250mm Manual chuck diameter:1200mm Spindle speed:0-500rpm/min
