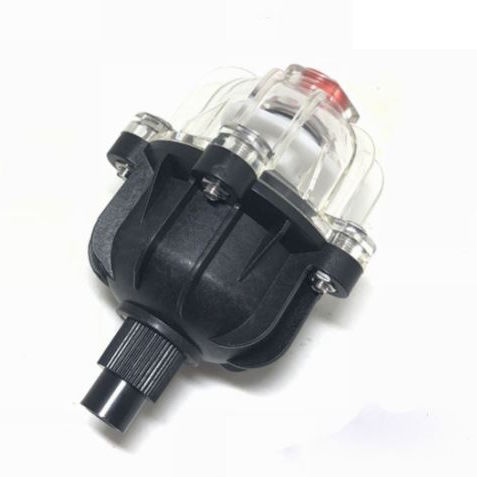

Air drain AD400-04

automaticmechanical

AD400-04 Pneumatic Automatic Drainer With Zero Gas Consumption Model/technical parameters Guarantee pressure :1.5MPa(10.2kgf/cm 2 ) Max pressure : 1.0MPa(1-12.2kgf/cm 2 ) Pressure range : 0.1-1.0MPa(1-12.2kgf/cm 2 ) Fluid temperature and environment : 5-60ºC Takeover caliber : G 1/2 Drainage caliber : G 1/4 Switch : auto or artificial... Model/technical parameters Guarantee pressure:1.5MPa(10.2kgf/cm2) Max pressure:1.0MPa(1-12.2kgf/cm2) Pressure range:0.1-1.0MPa(1-12.2kgf/cm2) Fluid temperature and environment:5-60ºC Takeover caliber:G1/2 Drainage caliber:G1/4 Switch:auto or artificial Weight: 170g 4) Maintenance 1. This is the consumables of compressed air pipe. 2. When installed ,please pay attention to that the protective position is vertical. 3.,in order to avoid blockage which will affect the drainage effect.,clean the inside at least once a month 4.when installing the drainpipe,the length can not be more than 1m, and can not bend upward 5.the power of compressor is more than 3.7 KW.
