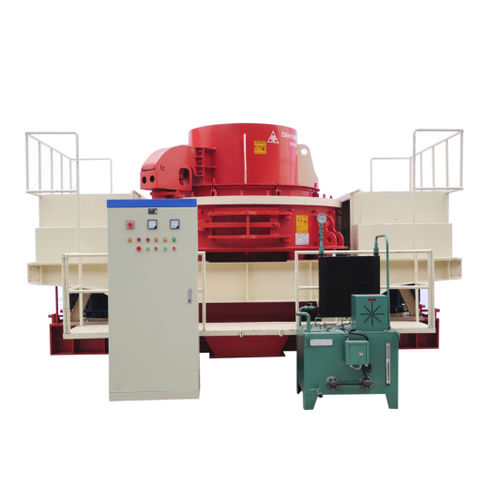

Vertical-shaft impact crusher XHL
stationaryfine

vertical-shaft impact crusher
vertical-shaft impact crusher
vertical-shaft impact crusher
vertical-shaft impact crusher
Add to favorites
Compare this product


Characteristics

Technology
vertical-shaft impact
Mobility
stationary
Other characteristics
fine
Capacity

Max.: 1,700 t/h
(1,041.1 lb/s)

Min.: 70 t/h
(42.9 lb/s)

Motor power

Max.: 500 kW
(679.81 hp)

Min.: 160 kW
(217.54 hp)

Weight

12,000 kg, 15,200 kg, 18,000 kg, 35,000 kg
(26,455.47 lb, 33,510.26 lb, 39,683.21 lb, 77,161.79 lb)

Description

Dahongli vertical shaft impact crusher is a model intergrating advanced mechanism and scientific design ,with characeristics of long seivice life ,safty and reliability,large crushing ratio,high sand-making rate and high production capacity. It is suitable for aggeregate crushing and shaping ,which provides more cubical-shaped end products. The lubrication system realizes longer service life and processing more stability. It is ideal for the last crushing stage for rocks, ores and minerals . Application range:expressway, high-speed railway, construction, municipal engineering, hydropower dam construction, concrete mixing station,quarry ect. Material:quartz, limestone, river pebble, granite,copper,iron ore, refractory, bauxite clinker and other hard and brittle materials Product characteristics 1. The cover-lifting facilitates allows maintenance more safty and efficiency. 2. The vsi crusher can control product grade by optimizing multiple variables, such as changing rotor speed, adjusting the waterfall flow . 3. Due to the low maintenance and ease of operation, The vsi crusher can be easily and quickly connected to any automation system. This enables centralized control, allowing the operator safely to control. 4. The installation is simple and fast, and the vsi crusher requires only a very small number of support structures. It is an ideal mobile device. 5. It provides more cubical-shaped end products. 6. A variety of models are available for any fine crushing .
