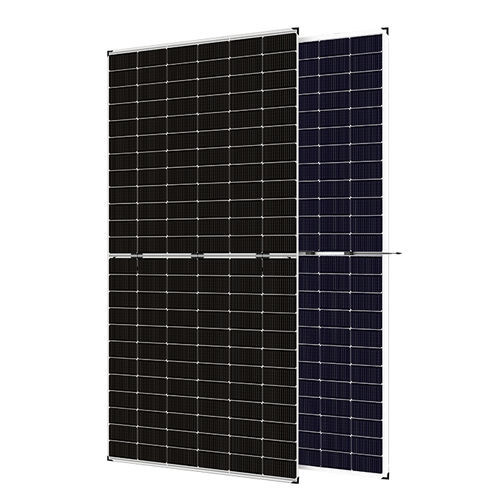

Monocrystalline silicon solar panel ODA-144MHD (182 TOPCon)
TUVblackIP68

Monocrystalline silicon solar panel - ODA-144MHD (182 TOPCon) - Ningbo Osda Solar Co., Ltd. - TUV / black / IP68

Add to favorites

Compare this product

Go to the Ningbo Osda Solar Co., Ltd. website for more information

Characteristics

Technology: monocrystalline silicon
Certifications: TUV
Other characteristics: black, glass-glass, IP68
Peak power (Wp): 570 W, 575 W, 580 W
Open-circuit voltage: 50.7 V, 50.9 V, 51.1 V
Short circuit current: 14.3 A, 14.4 A, 14.5 A
Max power voltage: 42.1 V, 42.2 V, 42.4 V
Max power current: 13.6 A, 13.7 A
Module efficiency: 22.06 %, 22.25 %, 22.45 %
Lenght: 2,279 mm
(90 in)
Width: 1,134 mm
(45 in)
Height: 35 mm
(1 in)
Weight: 29.7 kg
(65.48 lb)

Description

At least 30 years life cycle Extra power generation is higher than regular modules about 10%-30% Lower electricity cost High double-sided ratio high module power Reduce the overall BOS of the PV system Compared with low light conditions such as haze and overcast days Regular modules have higher power output Anti-PID (Potential Induced Decay) by TUV North German industry standard
