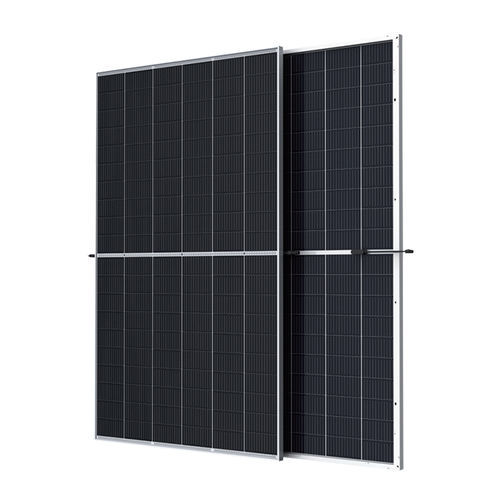

Monocrystalline silicon solar panel ODA-120MHD(210)
TUVblackIP68

Add to favorites

Compare this product

Go to the Ningbo Osda Solar Co., Ltd. website for more information

Characteristics

Technology: monocrystalline silicon
Certifications: TUV
Other characteristics: black, glass-glass, IP68
Peak power (Wp): 585 W, 590 W, 595 W, 600 W, 605 W
Open-circuit voltage: 33.8 V, 34 V, 34.2 V, 34.4 V, 34.6 V
Short circuit current: 18.4 A, 18.5 A, 18.6 A
Max power voltage: 33.8 V, 34 V, 34.2 V, 34.4 V, 34.6 V
Max power current: 17.3 A, 17.4 A, 17.5 A
Module efficiency: 20.67 %, 20.84 %, 21.02 %, 21.2 %, 21.37 %
Lenght: 2,172 mm
(86 in)
Width: 1,303 mm
(51 in)
Height: 35 mm
(1 in)
Weight: 35.7 kg
(78.71 lb)

Description

Apply 210mm large silicon wafer technology and half module technology Multi-busbar (MBB) technology is applied to effectively improve optical utilization and reduce internal current consumption Apply innovative non- destructive cutting technology to reduce the risk of cracking Industry standard anti-PID (potential induced decay) by TUV North Germany
