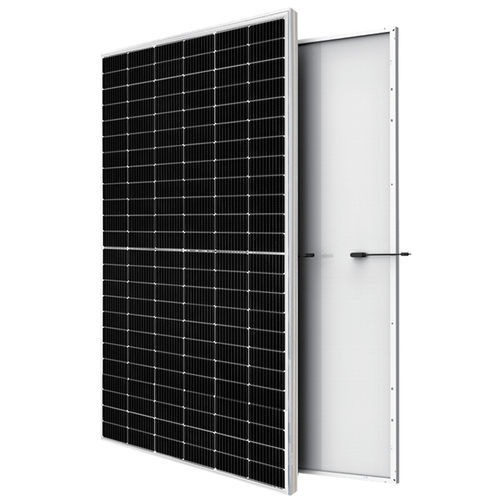

Monocrystalline silicon solar panel ODA-144MH（182)
TUVblack

Monocrystalline silicon solar panel - ODA-144MH（182) - Ningbo Osda Solar Co., Ltd. - TUV / black

Add to favorites

Compare this product

Go to the Ningbo Osda Solar Co., Ltd. website for more information

Characteristics

Technology: monocrystalline silicon
Certifications: TUV
Other characteristics: black
Peak power (Wp): 530 W, 535 W, 540 W, 545 W, 550 W
Open-circuit voltage: 49.3 V, 49.5 V, 49.7 V, 49.9 V, 50.1 V
Short circuit current: 13.7 A, 13.8 A, 13.9 A, 14 A
Max power voltage: 41.4 V, 41.6 V, 41.8 V, 41.9 V, 42.1 V
Max power current: 12.8 A, 12.9 A, 13 A, 13.1 A
Module efficiency: 20.5 %, 20.7 %, 20.89 %, 21.08 %, 21.28 %
Lenght: 2,279 mm
(90 in)
Width: 1,134 mm
(45 in)
Height: 35 mm
(1 in)
Weight: 28.4 kg
(62.61 lb)

Description

Half-cut Technology New circuit design, lower internal current and lower internal resistance loss Significantly avoiding heat spot The unique circuit design to reduce the temperature of heat spot significantly,so that to reduce the power loss and then increase the output of modules. Increasing power generation can reduce the cost per kilowatt-hour Industry standard anti-PID (potential induced decay) by TUV North Germany
