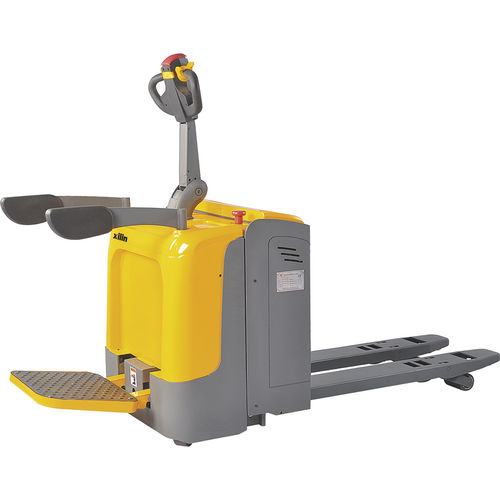

Electric pallet truck CBD25R-II

stand-onwith rider platformfor warehouse

CBD20R/25R is the stand-on type platform Pallet Truck, with small turning radius and super light steering system. widely used in large warehouse and big supermarket for medium distance transport. Standard features • Germany FREI Tiller Hand ● Emergency stop & belly button ● BDI and hour meter ● Casters to balance stability ● Industrial battery ● Brushless AC motor ● Vertical driving wheel ● Sideway battery change ● Out side Charger ● Platform with speed sensor Model - - CBD25R-II Load capacity - Q(kg) - 2500 Load centre distance - c(mm) - 600 Load idetance,centre of drive axle to fork - x(mm) - 815/865/935 Fork height,lowered - h13(mm) - 82 Tyre size, front - mm - Φ250×70 Tyre size, rear - mm - Φ82×126(98) Additional wheels(dimensions) - mm - Φ127×57 Wheels, number front rear(x=driven wheels) - - 1X+2/2(4) Max.lift height - h3(mm) - 202 Height of tilier in drive position min./max - h14(mm) - 1150/1430 Overall length - l1(mm) - 1710/1760/1830 Length to face of forks - l1(mm) - 610 Overall width - b1(mm) - 775 Fork dimensions - s/e/l(mm) - 53×180×1100(1150/1220) Width overall forks - b5(mm) - 520/550/650/685 Aisle width for pallets 1000×1200 crossways - Ast(mm) - 1910/1960/2030 Aisle width for pallets 800×1200 crossways - Ast(mm) - 2010/2010/2030 Turning radius - Wa(mm) - 1550/1600/1670 Travel speed,laden/unladen - Km/h - 7/7.1 Battery voltagem,nominal capacity K5 - V/Ah - 24/240 Battery weight - kg - 240 Battery dimensions l/w/h - mm - 750×170×570 Service weight(with battery) - kg - 750 Option • Fork width and length ● Load backrest ● Built-in Charger ● Customized battery compartment ● Entry & exist roller for empty pallets ● EPS ● large compartment with battery capacity 400Ah, drive speed 10KM/H
