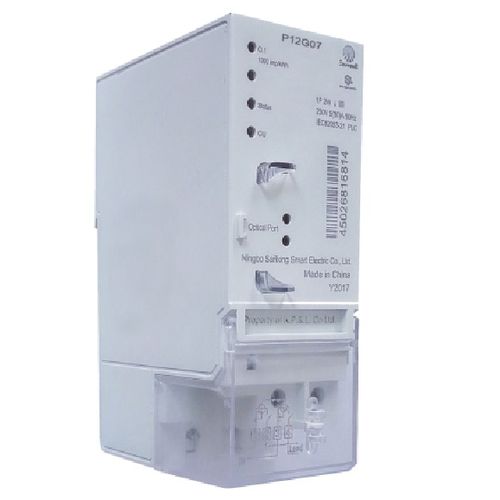

Single-phase electric energy meter P12G07

DIN railprepaid

P12G07 Single Phase DIN-Rail Split Prepayment Meter Product Overview Sanxing’s P12G07 range is a single phase two wire split keypad DIN-Rail prepayment meter. The meter consist of two parts, the MCU (Measurement Control Unit) and CIU(Customer Interface Unit). This allows utility to install the MCU in a meter enclosure located on the wall or on the top of the pole and its small size enables multiple installation in one enclosure, resulting in cost saving for the utilities. Key Features -Double built-in relay for control (Phase+Neutral) -By-pass function -IP54 Protection -Bottom in and bottom out -STS standard protocol ensures an open and secure operating system -Meter Cover/Terminal Cover open detection and disconnection (power on or power off) -Current reverse detection, record and disconnection -Port design on PCB for integration when there is no display on the LCD -Multiple events detecting and records with categories of operation -PLC/M/RF between MCU and CIU -Prepaid mode and postpaid mode configurable -Magnetic tamper detection -Recall of last 10 tokens entered
