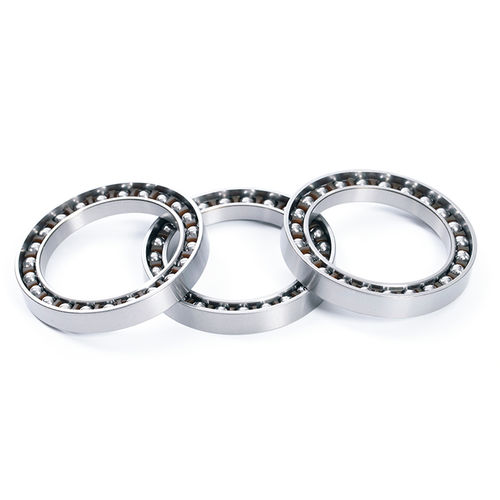

Roller bearing KAT2 series
ball bearingaxialsteel

Roller bearing - KAT2 series - NINGBO SHILONG BEARING CO., LTD - ball bearing / axial / steel
Roller bearing - KAT2 series - NINGBO SHILONG BEARING CO., LTD - ball bearing / axial / steel
Roller bearing - KAT2 series - NINGBO SHILONG BEARING CO., LTD - ball bearing / axial / steel - image - 2
Roller bearing - KAT2 series - NINGBO SHILONG BEARING CO., LTD - ball bearing / axial / steel - image - 3
Roller bearing - KAT2 series - NINGBO SHILONG BEARING CO., LTD - ball bearing / axial / steel - image - 4
Add to favorites
Compare this product


Characteristics

Rolling element
roller, ball bearing
Configuration
axial
Material
steel
Applications
for generators
Other characteristics
precision, gear
Inside diameter

Max.: 71 mm
(2.8 in)

Min.: 24 mm
(0.94 in)

Outside diameter

Max.: 95 mm
(3.74 in)

Min.: 32 mm
(1.26 in)

Width

Max.: 15 mm
(0.591 in)

Min.: 3 mm
(0.118 in)

Description

A harmonic gear is a strain wave gear which can improve certain characteristics compared to traditional gearing systems, It is very commonly implemented in robotics today and used in aerospace as well, for gear reduction but may also be used to increase rotational speed, or for differential gearing One part called wave generator is very important. The wave generator is made up of two separate parts: an elliptical disk called a wave generator plug and an outer ball bearing. This outer ball bearing (Soft bearing) as the key part of wave generator, it can transfer the power and motion through elastic deformation. RCL bearing for wave generator would help you reach your requirement and demand. Key Words: Ball Bearing/ soft /wave generator / Roller Bearing/ For robot Characteristics 1. Rolling element: ball 2. Configuration: robot bearing 3. Precision degree: ABEC-1, ABEC-3, ABEC-5, ABEC-4, P0, P6, P5, P4 4. Vibration degree: Z2, Z3, Z4 5. ISO9001, TS16949 Certification The structure of the harmonic drive motor bearing is slightly different from ordinary crossed roller bearings. Compared with standard crossed roller bearings, there are many installations threaded holes on the inner and outer rings. Besides, the material of harmonic gear reducer bearing is made of high-end GCr15 bearing steel
