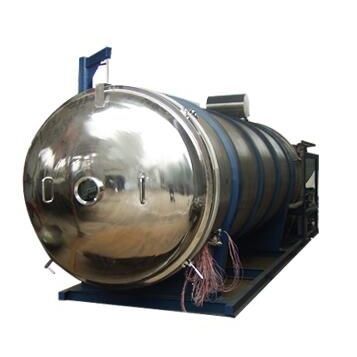

Freeze dryer for the food industry SJFD

processstainless steel

• Shelf loading area : 80㎡ • Condenser ice capacity : 900-1000Kg/patch • power : 3 phase 380V/50Hz(220V/60hz need transformer) • Rated power : 120.5Kw • Cooling water requied : ＞50m3/h (T＜28℃, P=0.1-0.15MPa） （recycling water） 60m3/h • Heater power : 40kw • Defrost water : ＞40.5 m3/h (T=50-60℃, P=0.1MPa） • Machine size : Custom made Drying chamber • Designed pressure : -0.1MPa • leakage : 0.005m3Pa/s • Main parts • Chamber material : SUS304 • locker : manual • Door material : SUS304 • Sealer material : Silicon rubber • Temperature sensor : PT100 shelf • Shelves area: 80㎡ • Shelf temperature range : -35℃~ +80℃ • Temperature rise rate（without load） : ≥1℃/min • Pressure : 1.0MPa • Shelf material : Stainless coil inside • Shelf No. : 16+2(radiation) • Shelf distance : 60 mm • Shelf size(length X width) : 4200*1200 • Temperature sensor : PT100 Condenser • Designed pressurization : -0.1MPa • leakage : 0.005M3Pa/s • Ice capacity : 1000kg • Lowest temperature : -45℃ • material : SUS304/ • defrost : soak water • Coil material : Stainless 304 • Temperature sensor : PT100
