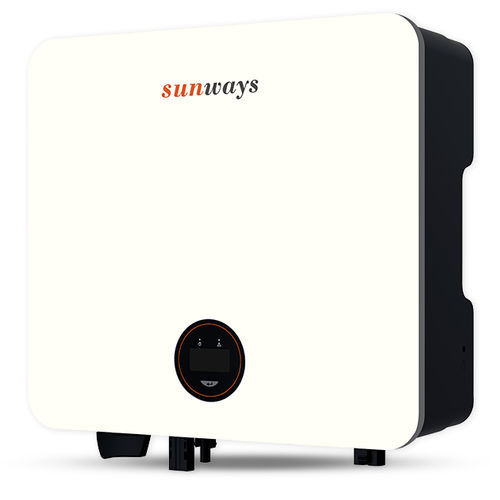

On-grid DC/AC inverter STS series
single-phasecompactwith MPPT

On-grid DC/AC inverter - STS series - Ningbo Sunways Technologies Co., Ltd. - single-phase / compact / with MPPT

On-grid DC/AC inverter - STS series - Ningbo Sunways Technologies Co., Ltd. - single-phase / compact / with MPPT - image - 2

On-grid DC/AC inverter - STS series - Ningbo Sunways Technologies Co., Ltd. - single-phase / compact / with MPPT - image - 3

On-grid DC/AC inverter - STS series - Ningbo Sunways Technologies Co., Ltd. - single-phase / compact / with MPPT - image - 4

On-grid DC/AC inverter - STS series - Ningbo Sunways Technologies Co., Ltd. - single-phase / compact / with MPPT - image - 5

Add to favorites

Compare this product

Characteristics

Type

on-grid

Electrical characteristics

single-phase

Other characteristics

compact, with MPPT

Certifications

CE, IEC

Power

Min.: 1,000 W

Max.: 3,300 W

Output power kVA

1.1 kVA, 1.65 kVA, 2.2 kVA, 2.75 kVA, 3.3 kVA
(1.495583 hp, 2.243375 hp, 2.991167 hp, 3.738958 hp, 4.48675 hp)

Output voltage

220 V, 230 V

Voltage

360 V

Primary current

16 A

Description

Adapt to complex power grid High reliability due to good heat dissipation design Integrated lightning protection for both DC and AC High anti-corrosion ability with aluminum alloy die casting technology Wider working temperature and altitude, adapt to various installation environments High Yield High yield with Max. 97.5% efficiency European weighted efficiency 97% Wide MPPT voltage range Up to 10% continuous output overloading capacity Single MPPT design with precise MPPT algorithm Easy to use Remote upgrading available Plug and play connectors, easy for installation Fast and easy configuration via App or OLED display Support wireless and wired internet connection (RS485/Wi-Fi/GPRS/LAN optional)
