Flat gasket SW600 series

spiralgroovedflange

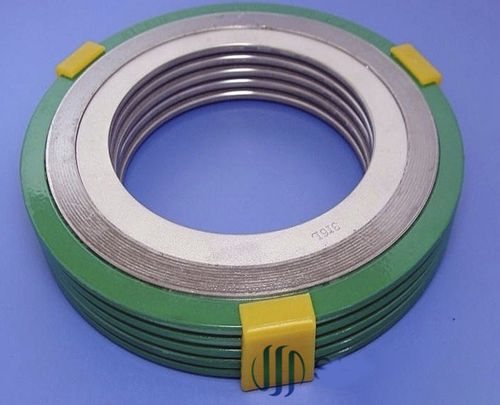

Standard Spiral Wound Gasket SUNWELL-SW600 • Products are manufactured in accordance with all relevant gasket standards. • All types of Spiral wound gaskets can be manufactured, CG, CGI, R, RIR, etc. • Our production capacity is 350,000 pcs per month. • Material combinations for all operating conditions. Description SUNWELL SW600 spiral wound gasket is formed of V-shaped Metallic strip and soft non-metallic filler. Support rings, inside and Outside the spiral, improve the gasket's handing, fitting and Versatility. Depend on its excellent compression resilience, it is suitable for sealing spots where the alteration of temperature and pressure are frequent. Types SW600-S Basic Type Basic construction type, inner and outer diameters are reinforced with several piles of metal without filler to give greater stability and better compression characteristics. - Suitable for tongue and groove, male and female or grooved to flat face flange assemblies. SW600-SI Inner Ring Type Solid inner metal ring acts as a compression stopper. To prevent accumulation of solids, reduce turbulent flow of process fluids and minimize erosion, damages of gasket between flange bore and the inside diameter, the annular space is filled up by solid inner metal ring. - Suitable for male and female pipe flanges. SW600-GS Outer Ring Type Solid outer ring accurately locates the gasket on the flange face to give the additional radial strength to prevent the gasket blowout and acts as a compression limiter.
