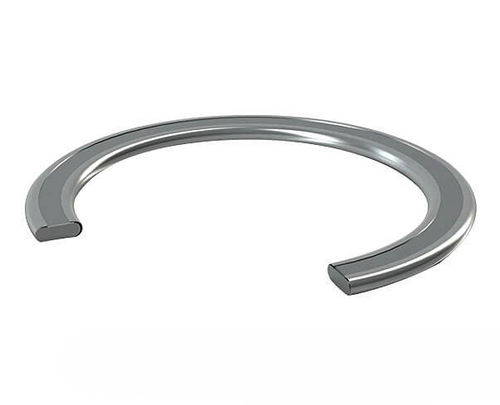

Expanded graphite gasket 9 series

ceramicbrasscopper

Double Jacket Gasket SUNWELL 900 • Jacketed is made by hands, and welded. • Soft pliable core within thin metal covering. • Wide choice of jacket and filler materials Description Double jacket gasket with soft pliable core, surrounded by a metal jacket that totally or partially encloses the filler material. Partition bars can be incorporated , integrally or welded into the gasket. Typical applications >Heat exchangers >Gas mains >Boiler and fues >Pumps. > Valve bonnets Materials Jackets: Soft iron, low carbon steel, stainless steel, nickel, copper, aluminium, brass, titanium, monel, etc.Filler: Expanded graphite, ceramic, PTFE, etc. How to order? >To industry, national and international standards, or customer specification. >Materials of jacket and filler selected to suit operating conditions. Please specify the form of the bars when ordering: Welding allowed or not allowed Tolerance The gasket thickness tolerance is (+0.03 inch., -0.000 inch) (+0.8mm, -0.0mm) >For gaskets NPS 1/2 through NPS 24, the outside and inside diameter tolerances are +0.06 inch, -0.0 inch (+1.5mm, -0.0mm); >There are no Class 400 flange for NPS 1/2 through NPS 3 (Use Class 600); >There are no Class 600 flanges for NPS 1/2 through NPS 2-1/2 (Use Class 1500); >There are no Class 2500 NPS 14 and larger
