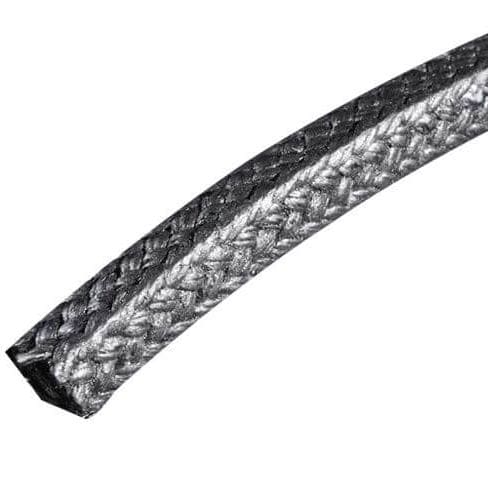

Carbon fiber braided packing P501

synthetic fiberfor centrifugal pumpsfor valves

Carbonized Fiber Packing SUNWELL P501 • Carbonized fiber packing braided from shrink-proof synthetic fiber impregnated with PTFE, Silicone-oil-free. Oxidized fiber has high strength and good thermal conductivity, PTFE makes the packing have excellent self-lubrication. Description Carbonized fiber packing is braided from carbonized fiber yarns, impregnated with PTFE dispersion. It is inert to almost all corrosive chemicals. It can replace PTFE asbestos packing within wide service range. Typical Application >Be used in weak acids and alkalis or media containing few grains of solid particles >Mainly used for centrifugal pumps, plunger pumps, mixers and valves. Prime Features >Without cooling it can be used with hot water up to 160 deg.C, with cooling up to 207 deg.C. >Does not damage shafts and has long life > Excellent self-lubrication Material : 100% carbonized fiber and PTFE Temperature Range : -50 up to +280 oC atmosphere; Process : Rotating : 20 bar Reciprocating : 100 bar Static : 200 bar Shaft Speed : 25m/s in rotary PH : 2~12 Density : 1.1~1.3g/cm3
