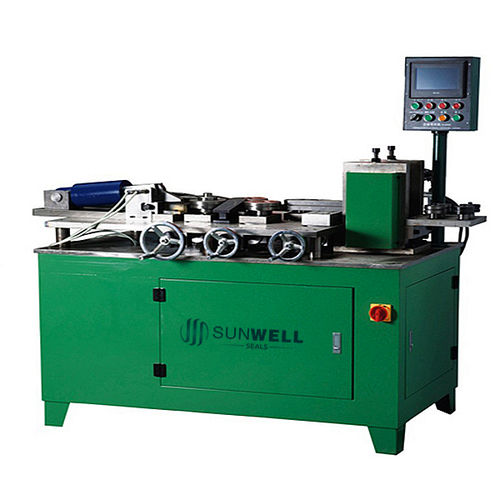

Hydraulic bending machine PX1000D

tubefor gasketsautomatic

Automatic Bending Machine • Code: SUNWELL PX1000D • Full automatic operation; • Automatic cutting; • Automatic diameter control. Description SUNWELL PX1000D is a new design machine for bending the rings for spiral wound gaskets and kammprofile gaskets. It's a full automatic machine. only need to add the metal strip to the middle of rings. And adjusting the rolls to the exactly sizes which you need. It can bending, cutting by itself according to the set up on the PLC. There're 2 running method, on is hand movement, another is full automatic. It can produce the ring cyclic to the end of metal strips. Specification Producing range: 4" 150# outer ring and above; Thickness: 2mm, 3mm, 4mm, other thickness on request. Max. External Diameter: Regular: 1,300mm, (No limited after expanding) Min. Inner Diameter: 120mm Max. Power: 2.2KW Voltage: 380AV (Or 220A on request) , SUNWELL can design according to the different national industrial power. Size: 1,480mm x 1,300mm x 1,600mm Weight: 750KGS.
