Braiding machine E400 series

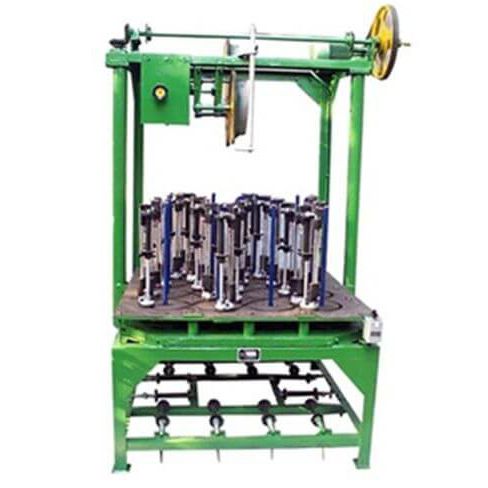

18 Carrier Square Braider with 3 Orbits SUNWELL E400AM-18SB • It is a universal square braider, for braiding various fiber packing with size 6 ~ 16mm square. Description SUNWELL 18 carriers square braider with 3 orbits is a universal square braider. For braiding various fiber packing with size 6 ~ 16mm square. Specifications >Power: 380AV, 50HZ. 0.75KW >L x W x H = 1 x 1 x 1.9m >N.W.: appr. 300KGS >Output: 6~ 20 KGS/8 hours >Work range: 6 ~ 16mm square >16RB carriers round braider on request 8 Carrier Square Braider with 2 Orbits SUNWELL E400AM-8SB • SUNWELL 8 carriers square braider with 2 orbits is a universal square braider. For braiding various fiber packing with size 3 ~ 12mm square Specifications >Power: 380AV, 50HZ. 0.75KW >L x W x H = 0.6 x 0.67 x 1.7m >N.W.: appr. 180KGS >Output: 3 ~ 10 KGS/8 hours >Work range: 3 ~ 12mm square >8RB carriers round braider on reques Advanced Semiautomatic Inverted Braider SUNWELL E400ASIB • SUNWELL Advanced semiautomatic inverted braider as the same as Germany style. Stop automatic while yarn broken, impregnated lubrication and heated during braiding. The pull can be adjusted 1~4kgs, braided tightly, show output, lower noise Specifications >Power: 220av, 50HZ, 3KW >L x W x H = 1.5 x 1.5 x 2.4m >N.W.: appr. 1800KGS >Output: 10 ~ 50 kgs/8 hours >Work range: 6 ~ 20mm inter-braid; 20 ~ 50mm braid-over-braid >Carriers: 8, 20, 24, 32, 36
