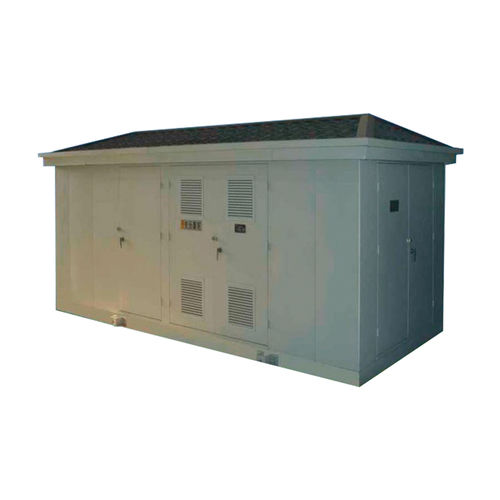

Power distribution substation YBT12-24

compactprefabricatedoutdoor

YBT12-24 prefabricated substation is a 24kV substation series product designed by Tianan to meet the needs of urban network construction. It has the characteristics of compact structure, strong complete set, safe and reliable operation, convenient maintenance and beautiful appearance. It is widely used in high-rise buildings, residential quarters, stations, docks, ports, parks, shopping malls, industrial and mining enterprises and other places. It can be used in ring network power distribution system, and can also be used as a radial grid terminal for power supply. The product has novel structure, reliable performance, high quality, and its technical performance has reached the leading domestic level. •The skeleton of the substation is made of galvanized channel steel and angle steel, which has sufficient mechanical strength and rigidity; •The shell material adopts cold-rolled steel plate, stainless steel plate, aluminum alloy plate, composite color plate or glass fiber reinforced cement plate; •The rooms of the substation are separated into independent small rooms with steel plates and equipped with lighting devices; •The top cover of the substation has a double-layer structure, which can prevent heat radiation from increasing the indoor temperature and has a good ventilation effect; •The top of the transformer room is equipped with an automatic exhaust device to control the temperature of the transformer room;
