Safety gates system SG400

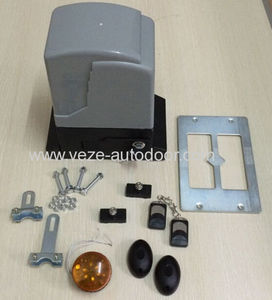

Auto sliding gate opener technical characteristics: Model SG400 Power input AC220V/110V±10% (50-60Hz) Motor power 400W Maximum gate weight 800KGS Motor voltage 24V DC Gate moving speed 12m/min Gear Module M4 Transmitter frequency 433.92MHz Remote control range ≤20M Limit switch Magnetic or Spring limit switch Stable performance Electric soft start,soft stop Safety function Automatic reverse back upon impact Working temperature -20ºC-65ºC Product weight 14.50kg Auto sliding gate opener: Elegant appearance,aesthetic design Solid and compact structure Smooth and reliable transmission Easy to install and use Maintenance-free, permanent lubrication Magnetic limit switch Intelligent learning in the first running,accurate positioning of opening and closing One-way self-locking, safe and secure Automatic reverse upon obstacle to ensure safety Adjustable automatic closing time Fast electric/mobile switching function Can connect infrared protection externally In case of power failure,the gate can be opened and closed manually after releasing the clutch One set auto sliding gate opener includes: 1 motor 1 control board 2 transmitters 1 lamp 1 pair photocell Mounting accessories
