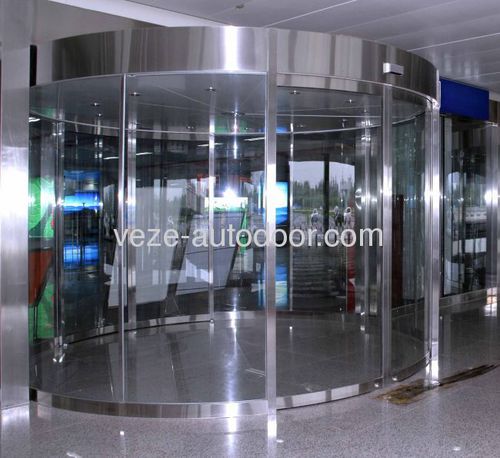

Curved sliding door

aluminumsafetyautomatic

1) Overall features and functions of automatic curve sliding doors (a) Various sizes and radius adaptable to a wide range of requirements. (b) Built-in intelligent microprocessor control chip to ensure the accuracy and precision of the operation. (c) 24V brushless DC motor integrated with worm gear reducer, high efficiency, large torque, long lifespan, and low noise. (d) The door can be manually opened at a power failure. (e) The microprocessor operating parameters can be adjusted to accommodate various climatic conditions. (f) Can be interfaced with all kinds of access control devices, make the system more safe and reliable. (g) Microwave motion detectors and safety beam protect the passengers from bumping the door, safe and reliable. (h) Automatically reverse back if an obstruction is in the way of the automatic sliding door opening or closing cycle. (i) Modularization design allows a simple and easy installation (j) Provide elegant and spacious entrance (k)Two years warranty. 2) Technical specifications of automatic curve sliding doors Door style Single-leaf Double-leaf Door leaf weight max. 130kg*1 120kg*2 Door width 600~1100mm 600~1100mm Power supply AC150V-AC250V 50-60HZ Output voltage 24V DC Opening speed 100~500mm/s adjustable Closing speed 100~500mm/s adjustable Hold open time 0~9s adjustable Creep speed 30-100mm/s adjustable Hold close force 70N Manual Pushing Force <100N Power consumption 60W Ambient temperature -20~50°C
