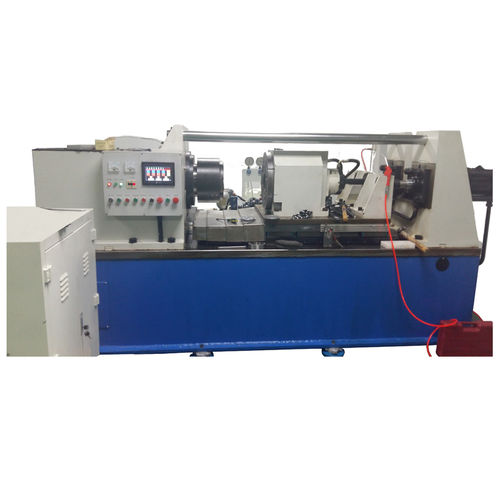

Friction welding machine C40

hydraulicprecision

First: Technology data 1.1 Model : C40 1.2Main parameters: Max Upset force：400KN Highest RPM：1450rpm Welding diameter：Ф35-Ф65mm Clamping length of rotation fixture：≤160mm Clamping length of movement fixture：100-450mm（note: must use double fixtures if length exceeding 800mm） Max stroke of worktable：320mm Pressure ratings:two（friction+upset） Time of first friction：0-99s Time of second friction：0-99s Upset time：0-99s Step speed of parts：0-20Sec Upset speed：20-30Sec Main motor: 45KW, 1960r/min Hydraulic motor: 22kw, Machine size： Overall size：L4000×W2800×H2200mm Weight：7.5Tons Supply items: The friction welding machine includes Hydraulic system, welding system, controlling system, Operation Manuals and certificates of approval. Main advantages: 1. Use 8 sets top quality Angular contact bearing, it can bear bigger axial force, so lower failure rate and longer lifespan, NOT using plane bearings similar with others. 2. The movable fixtures is stuck the Tin bronze, extremely enhance the wear-resisting, higher precision. 3. Piston rod guide sleeve often is cast iron, but we use non-oil bearings to guide, better 4. Linear slide rail is often single guidance groove, we use double guidance groove rail, extremely enhance anti-torque, so lifespan is higher than similar ones. Second: Main parts & brands 2.1 Bearings: NSK of Japan 2.2 PLC: Mitsubishi of Japan 2.3 Motor: Lichao Shanghai 2.4 Hydraulic system: Haimen from Beijing huade 2.5 Linear slid rail: Gao xin kai te from Guanzhou
