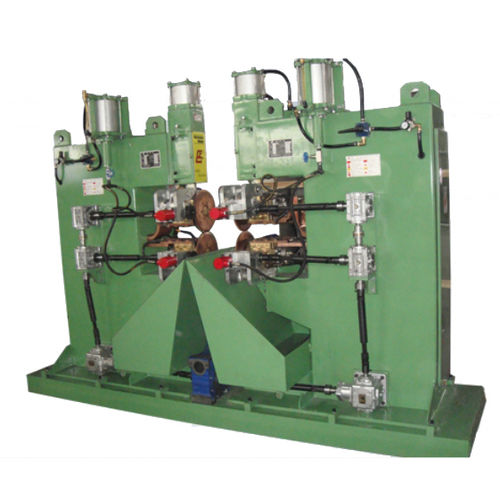

Seam welding machine FN series

automaticlongitudinal

FN-80-H: name of welding machine Seam welder series: FN-P-H/E-X FN: AC seam welder P: rated capacity H: transverse welding work piece X: special code, if no, it is ignored e.g: rated capacity is 80KVVA, seam welder with transverse welding workpiece is FN-80-H Z: longitudinal welder Characteristics >> Driven by three phase motors which is frequency conversion . The welding speed is even, easy adjustment and stable >>All the welder circuit loop is internal cooling system, the welding wheel is external cooling system. >>The parts of electric conduction turning on welding machine are designed to be embedded silver bushings structure. The conductive socket use full sealing oil-immersed way to conducting and lubricating, as a result, the conductivity is improved, meanwhile protecting the bearing bushing from blocking, rotating flexibly. >> There are two kind of seam welders, one is transverse , the other is longitudinal. >>This machine is widely used in hardware, home appliance, auto car and fuel tank industries, best for welding basin, bucket, case and sealed thin wall container of low carbon steel, stainless steel material.
