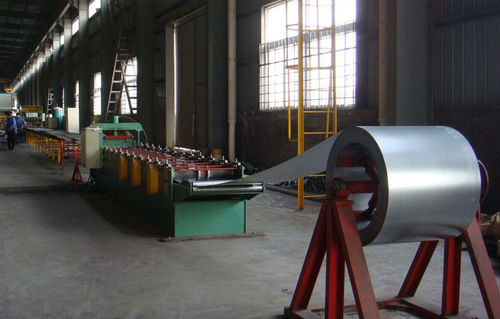

Metal forming machine steelPLC-controlledPLC-controlled
Add to favorites
Compare this product
Characteristics
- Product handled
- for metal
- Treated material
- steel
- Control
- PLC-controlled
- Operating mode
- PLC-controlled
- Other characteristics
- hydraulic, cutting
Description
Main technical parameters ：
1, Material steel, thickness, 0.4-0.8mm, coil width, 625mm
2, Working speed, 12-16M/min
3. Forming roller station, 12 stands
4. Main motor power, 5.5kw
5. Hydraulic station motor power, 3kw
6. Roller material, NO.45 steel, coated with chrome
7. Roller shaft material, 40Cr steel with treatment
8. Roller shaft diameter, φ76mm
9. Cutting type, hydraulic driven, cutting after forming
10. Shear material, Cr12 with quenching
11. PLC control system，Mitsubishi FX-IS series
12. Cut to length, 10m±2mm
13. Frequency, Dan Fuss
14. Control cabinet, xinjie OP320A
16. Rack material, 400 '工' type steel
