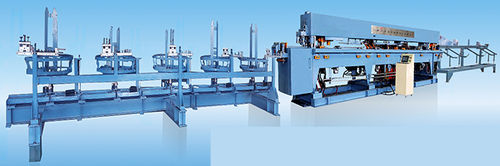

Mesh welding system

compactelectrichydraulic

Main advantages: 1. The usage is widely: a. truss range value of height (lowest: height 70mm, highest: 350mm, 350mm is a data in theory, actually we can not assure its availability).b. rebar diameter: the coarsest is 16mm, top chord, low chord, three pieces, regular production 12mm. 2. Easy to adjust, while producing: The assemble line of rebar truss welding adopts integral frame by 6.85m which can be adjusted by motor-driven. So it can satisfy different rebar truss welding with different height.(Normally, we can adjust one truss height within 10 minutes without replacing materials, but it should waste one piece of material) 3. The whole assemble line is compact structure, small floor area and good appearance. 4. Power saving: a, Without power consuming, the aligning is driven by hydro cylinder. b, The whole machine does not consume power, except for three transformers and hydraulic electric motor. c, It is no need for us to secondary artificial shear, because the wave crest space of rebar truss is adjustable within 190-210mm 5. Common rebar welding does not need to oxide skin treatment( It is suitable for cold rolling rebar welding and hot rolling rebar welding). Technical parameters： Supply voltage three phase AC380V,+10%～-10% Duty cycle 15% Rated output power of welding 300KVA
