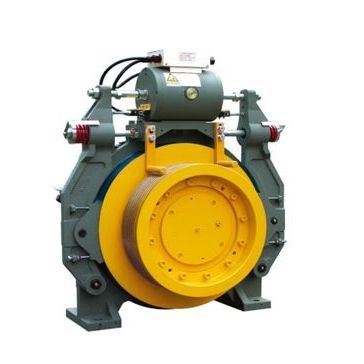

3-phase motor WWTY seriessynchronous400 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- AC/DC
- 3-phase
- Type
- synchronous
- Voltage
- 400 V
- Configuration
- permanent magnet, with DC brake
- Applications
- traction, for elevator
- Other characteristics
- high-torque, low-speed
- Power
Min.: 1.8 kW
(2.447 hp)Max.: 19 kW
(25.833 hp)- Intensity
Min.: 4.8 A
Max.: 43.7 A
- Torque
Min.: 271 Nm
(199.8793 ft.lb)Max.: 1,120 Nm
(826.0696 ft.lb)- Rotational speed
Min.: 58.8 rpm
(369.45 rad.min-1)Max.: 186 rpm
(1,168.67 rad.min-1)
Description
Product features
Traction ratio: 2:1
Rated capacity: 630、800、1000、1150kg
Rated elevator speed: 0.63、1、1.6、1.75m/s
Max. shaft load: 3000kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V for Brake opening,
and DC100V for brake holding
Product Description
This series of permanent-magnet synchronous gearless traction machines is directly driven by a low-speed, high-torque, 3-phase permanent magnet synchronous motor, and thus has the advantages of low energy consumption, low noises, no pollution, and little maintenance.
These traction machines can be arranged for providing upward traction or downward traction, and have remote manual brake release function.
This series of permanent-magnet synchronous gearless traction machines adapts single wrap, and roping factor is 2:1.
