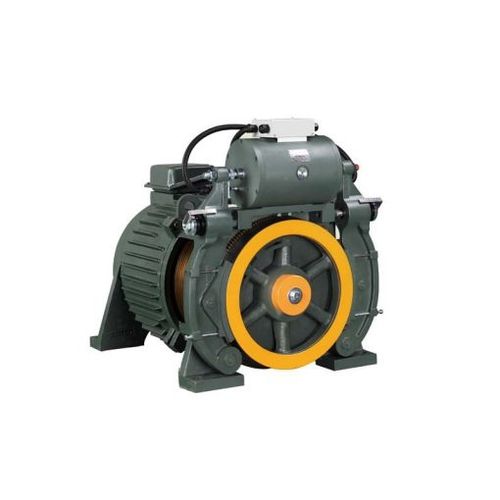

3-phase motor WTYF250 series

synchronous400 Vpermanent magnet

• Traction ratio: 1:1、2:1 • Rated capacity: 800、1000、1250、1350、1600、2000、2500kg • Rated elevator speed: 1、1.6、1.75、2、2.5、3m/s • Max. lifting height: 120m • Max. shaft load: 10000kg • Applicable converter: 3 phase 400V • Brake voltage: DC200V for Brake opening, and DC100V for brake holding • Number of motor poles: 24 poles WTYF250 series of permanent-magnet synchronous gearless traction machines are directly driven by a low-speed, high-torque, 3-phase permanent magnet synchronous motor, and therefore has the advantages of low energy consumption, low noises, no pollution, and little maintenance. These traction machines can be installed on the top of shaft way, with upward traction, and have handwinding function. This series of permanent-magnet synchronous gearless traction machines adapts double wrap, with the roping factor of 2:1 ad 1:1. If customers have any special requirements, please contact us and we can also manufacture permanent-magnet synchronous gearless traction machines with single wrap upon customer’s request.
