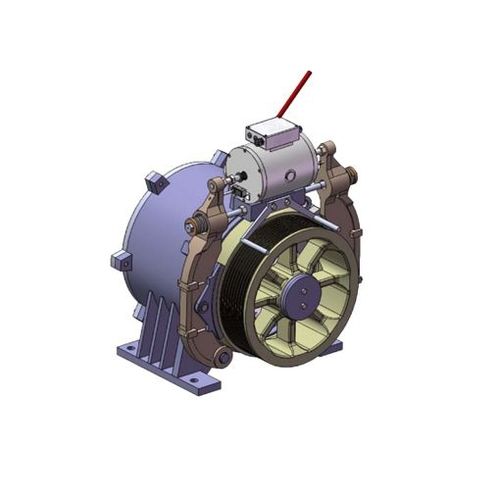

3-phase motor WJ340 seriessynchronous400 Vwith DC brake
Add to favorites
Compare this product
Characteristics
- AC/DC
- 3-phase
- Type
- synchronous
- Voltage
- 400 V
- Configuration
- with DC brake
- Applications
- traction, for elevator
- Other characteristics
- high-speed
- Power
Min.: 17 kW
(23.114 hp)Max.: 32.6 kW
(44.324 hp)- Intensity
Min.: 38 A
Max.: 72 A
- Torque
1,062 Nm, 1,148 Nm, 1,360 Nm
(783.291 ft.lb, 846.7213 ft.lb, 1,003.0845 ft.lb)- Rotational speed
Min.: 153 rpm
(961.33 rad.min-1)Max.: 229.2 rpm
(1,440.11 rad.min-1)
Description
• Traction ratio: 2:1
• Rated capacity: 1250~1600kg
• Rated elevator speed: 2~3m/s
• Max. lifting height:120m
• Max. shaft load: 6000kg
• Applicable converter: 3 phase 400V
• Brake voltage: DC200V for Brake opening, and DC100V for brake holding
This series is a medium and high speed gearless traction machine with large capacity. It is single wrap, and the traction sheave is cantilever-mounted, unique design allows easy installation and removed of traction sheave. The brake adopts drum type structure, and the braking torque is large, reliability is high, the maintenance and adjustment are convenient.
