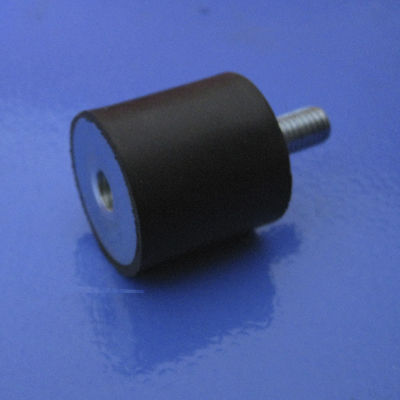

Vibration damper BS-A series

visco-elasticrubber

OPERATION AND INSTALLATION Their elasticity is much greater in all the directions parallel to the armatures than in the perpendicular direction. The rubber works based on compression or shear depending on the direction it is placed in at installation time. This direction is made according to the use and the objective. It is therefore installed with nuts or screws depending on the model chosen, with one part attached to the fixed chassis and the other to the machine to be suspended. APPLICATIONS The BS-A Types are particularly suitable for installation on small motor-pumps, motor-ventilators, driers, sieves, compactors, washing machines, electrical motors, on-board control panels, measuring apparatuses, control cabinets,microphones, fluorescent tubes, etc.The BS-A type anti-vibration mounts have a very wide range of uses. Their offer great elasticity in the radial and axial direction. Type BS is made in different rubber hardness’s:45-65 Shore hardness.
