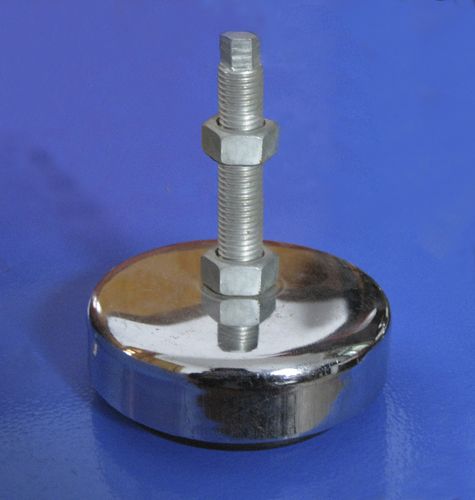

Rotary damper MT series

pneumaticfor machinesadjustable

The MT.-type mounts are used in cases where light or heavy machines should not be fixed to the floor or ground. Type - Max Load - Static - Dimension in mm Deflection - A - B - C - H kg - mm - Diameter - Max - Min - Thread - Max - Min MT400 - 400 - 3.2 - 65 - 31 - 26 - M12 - 110 - 105 MT 1000 - 1000 - 3.8 - 87 - 46 - 33 - M16 - 127 - 114 MT 2000 - 2000 - 3.8 - 130 - 58 - 46 - M20 - 142 - 130 MT 5000 - 5000 - 2.8 - 200 - 68 - 55 - M24 - 150 - 140 MT 9800 - 9800 - 3.5 - 258 - 83 - 65 - M24 - 176 - 158 DESCRIPTION The MT.-type mounts are used in cases where light or heavy machines should not be fixed to the floor or ground. APPLICATIONS The height adjustment system can be used to adjust the machines to the required level, thus insulating from vibrations and reducing noise. The type MT comes with a tilting system allowing optimum adaptation to all surfaces. The elastomer used is a mixture of oil-resistant synthetic Nitrile Butadyene Rubber (NBR). Height is adjusted by means of a screw, although this operation can even be performed once the machine has been assembled. The wide contact between the base of the machine guarantees good overall stability.
