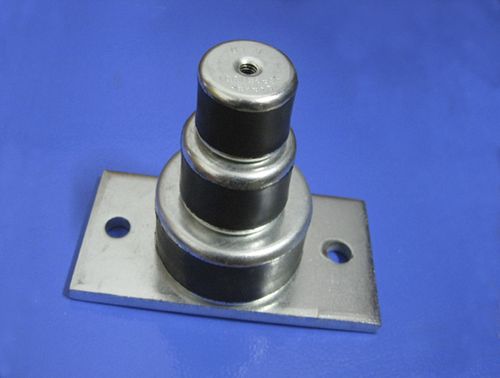

Cylindrical anti-vibration mount VD series

rubberfor pumpfor compressors

DESPRIPTION Cylindrical vibration damper comprising Natural Rubber, which is vulcanized to 2 galvanized steel plates with a centre thread. Type VD is made in 3 different rubber hardness’s, where the colour of the rubber show the hardness. • white 45° shore A • red 55°shore A • black 65°shore A Type VD in neoprene rubber is used where the mount is in contact with oil. OPERTAIONS The Vibration damper is used to dampen noise and vibrations from stationary machinery such as ventilators, pumps, electric-motors, converters and compressors with frequencies above 1200 rpm. It is constructed to be used in compression, but handles minor shear forces ACCESSORISE Base plate in galvanized steel for installation in floors.
