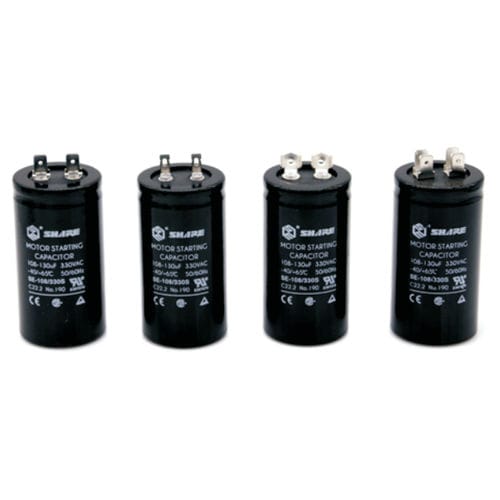

Electrolytic capacitor CD60-B

aluminumcylindricalencapsulated

Features Metal Case, Moisture and Oil Resistant Voltages from 110 VAC- 330 VAC SEB-1 Meets EIA Type 1 Specifications SEB-2 Meets EIA Type 2 Specifications General Specifications Operating Temperature: -40 to +65°C Voltage Range: 110 - 330 VAC Capacitance Range: 21 - 1280μF Capacitance Tolerance: -0% ~ +20% Operating Frequency: 50 - 60Hz Case Size: 17 Standard Sizes from 1.875" x 2.175" – 3.030" x 5.175" (Others Sizes Available Upon Request.) Termination: ¼” Quick Disconnect Terminals (Std.) Product Description: SHARE's type SEB-1 and SEB-2 AC Motor Start units are non-polarized aluminum electrolytic capacitors designed for intermittent AC duty. These capacitors are used in starting fractional horsepower, single-phase electric motors, as well as in gear motor applications. The capacitors are housed in metal cans,with plastic insulation. Units can be supplied with bleeder resistors and lead wires if required.
