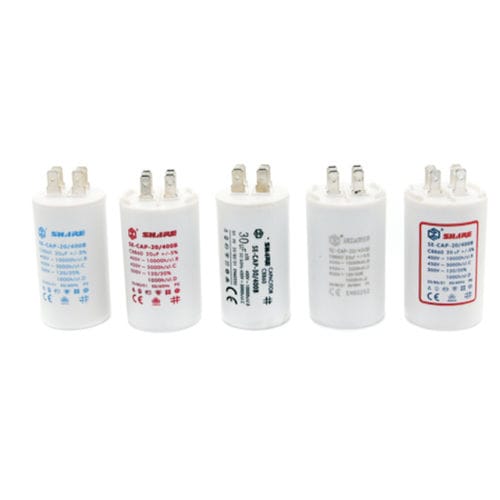

Metalized polypropylene film capacitor CBB60

cylindricalself-healingplastic

Features - Self-healing, metallized polypropylene film - Epoxy enclosed - Plastic shell , Moisture and Oil Resistant - Voltages from 150 - 600 VAC - Meets EN60252-1 Specifications - UL Recognized Capacitors - RoHS Compliant Operating Temperature: -40 to +70°C (std.) Voltage Range: 150 - 600 VAC Capacitance Range: 1 - 100μF Capacitance Tolerance: ±5% (std.) – others available Operating Frequency: 50 - 60Hz Case Size: Round Sizes Termination: 1/4" Quick Disconnect Terminals (Std.) Product Description: SHARE's CBB60 type are made of electical class metalized polyproylene film,complex high pure metalized electrode,dry fabric,flame-resistant plastic or aluminum shell and oxygen resin enveloped.The protection class is P2 and P0.And they have the characteristics of high cost performance,high pressure-resistant,long life and so on.Mainly used to starting and running of the AC motor,such as the water pump,washing machin,paper smash machine,tubular motor and so on.
