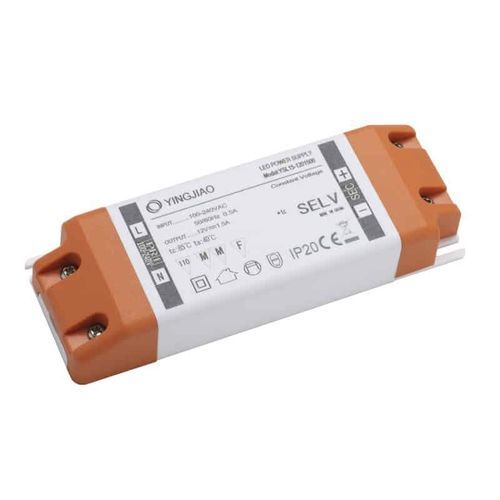

Power LED driver YSL15-D seriesconstant-currentdimmable
Add to favorites
Compare this product
Characteristics
- Other characteristics
- power, constant-current, dimmable
- Electrical power
10 W
- Input voltage
120 V, 230 V
- Primary current
350 mA, 500 mA, 700 mA, 1,050 mA
Description
- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
