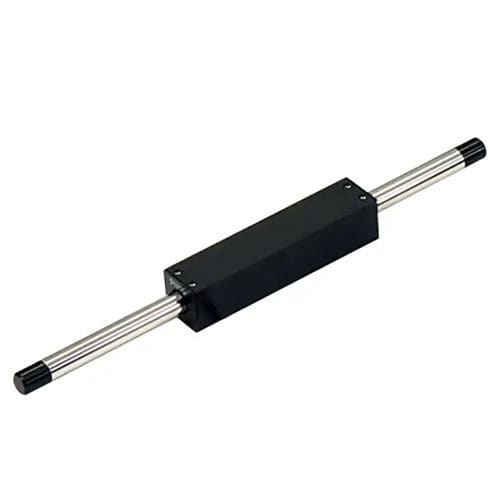

AC linear servomotor SX100Q240 Vhigh-speedhigh-precision
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Voltage
- 240 V
- Performance
- high-speed, high-precision
- Other characteristics
- compact
- Force
7.8 N
- Stroke
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)
Description
• Power dense, compact, and efficient design easily integrates into machine structures.
• Zero cogging for ultrasmooth motion required for high precision applications.
• Contactless motion for maintenance free operations, minimizing downtime.
• Non-critical air gap with no variation in force along the length of the shaft delivers smooth and quiet operation.
• Ideal for replacing ball screw actuators, flat or u-channel linear Motor, or pneumatic/hydraulic systems.
High Speed, High Acceleration Linear Motor
Linear servo motor with 10mm diameter shaft, quadruple-winding forcer.
Available with stroke lengths from 50-300mm.
Continuous Current (Amps)
0.45
Peak Force (N)
31.1
Peak Current (Amps RMS)
1.79
Force Constant (N/Amps RMS)
17.34
Force Constant (lbs/Amps RMS)
Back EMF (V/m/s)
5.78
Resistance (Ohms)
33
Inductance (mH)
6.79
