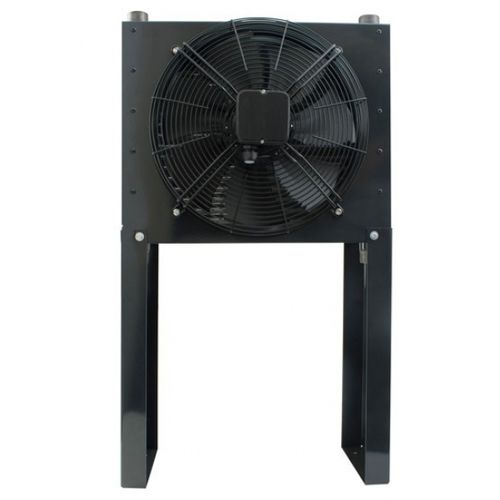

Compressed air aftercooler ACA series
industrialair-cooled

Add to favorites

Compare this product

Characteristics

Material

compressed air

Applications

industrial

Other characteristics

air-cooled

Maximum temperature

Min.: 120 °C
(248 °F)

Max.: 170 °C
(338 °F)

Flow rate

Min.: 66 m³/h
(2,330.768 ft³/h)

Max.: 4,500 m³/h
(158,916 ft³/h)

Pressure

15 bar
(217.557 psi)

Description

Air cooled aftercoolers series ACA are designed to reduce compressed air temperature and water vapour dew point in compressed air system. High efficiency axial fan forces ambient air over the heat exchangers copper tubes supported by aluminium fins, which provides the necessary cooling effect. The compressed air is cooled down to approximately 10°C above ambient temperature. ACA aftercoolers ensures the maximum performance and protection of all equipment, such refrigeration dryers, adsorption dryers and filters, positioned downstream of this unit. Characteristics operating pressure - 15 bar inlet air temperature - 120 °C max. inlet air temp. - 170 °C flow rate - 66 to 4500 Nm3/h standard colour - RAL 9005 Applications • compressed air systems
