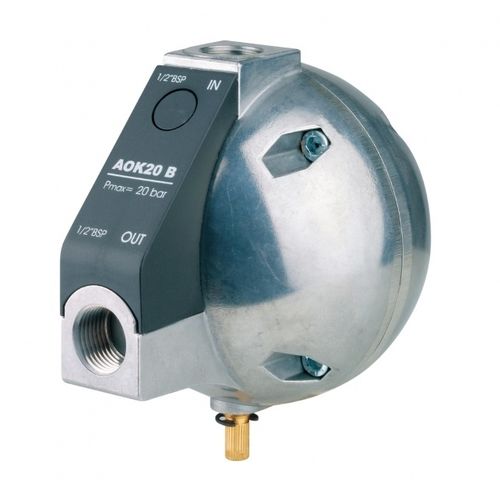

Condensate drain AOK 20B

automaticmechanicalfor compressors

AOK20 has been developed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air system. The unit can be installed as external drain on any application specified. Condensate accumulates in the aluminium reservoir and when the level is high enough condensate is discharged from the system without any air losses. Direct acting valve is operated by precise level controlled floater which assures reliable and efficient operation. Thanks to robust aluminium housing AOK20 is suitable for heavy duty applications. AOK20 is also equipped with separate manual drain for venting. AOK20 can be used in variety of applications. For applications not listed please contact producer or your local distributor. Characteristics operating pressure - 20 bar drain capacity - 167 l/h connections - ½`` operating temp. range - 1,5 to 65 °C Applications • air compressor (piston or screw) • after-cooler • cyclone condensate separator • pressure vessel/air tank • air dryer • air filter
