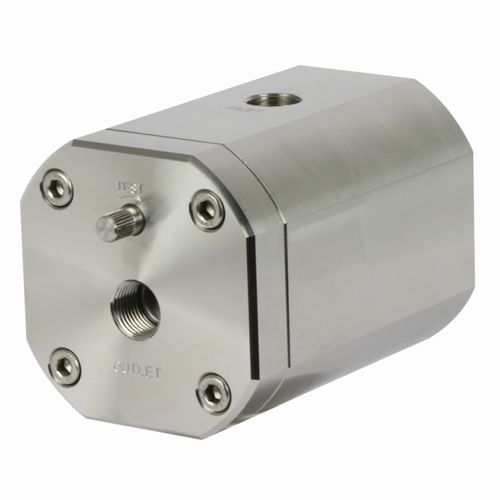

Condensate drain AOK 50SS

automaticmechanicalfor air filtration

AOK50SS has been developed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air system. The unit can be installed as external drain on any application specified below. Condensate accumulates in the stainless steel reservoir and is discharged from the system when the level is high enough. A direct acting valve is operated by a precise level controlled floater which assures reliable and efficient operation. Thanks to its robust stainless steel housing AOK50 SS is suitable for heavy duty applications. On the front, the AOK50 SS, is also equipped with a separate manual drain for venting. Characteristics operating pressure - 8 - 50 barg drain capacity - 145 l/h (at 50 barg) connections - ½`` operating temp. range - 1,5 to 65°C material - Stainless steel 1.4404 Applications • cyclone condensate separator • air filter
