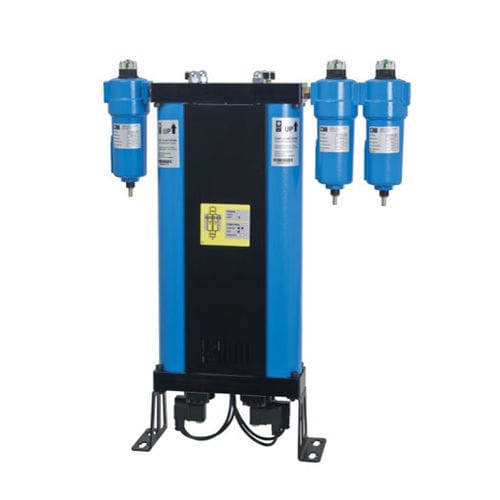

Heatless desiccant compressed air dryer A-DRY 6-600
triple-levelcompact

Heatless desiccant compressed air dryer - A-DRY 6-600 - Nitrogenium Innovations Filteration India - triple-level / compact

Heatless desiccant compressed air dryer - A-DRY 6-600 - Nitrogenium Innovations Filteration India - triple-level / compact - image - 2

Heatless desiccant compressed air dryer - A-DRY 6-600 - Nitrogenium Innovations Filteration India - triple-level / compact - image - 3

Heatless desiccant compressed air dryer - A-DRY 6-600 - Nitrogenium Innovations Filteration India - triple-level / compact - image - 4

Add to favorites

Compare this product

Characteristics

Technology

heatless desiccant

Number of stages

triple-level

Other characteristics

compact

Capacity

Max.: 600 m³/h
(21,188.8 ft³/h)

Min.: 6 m³/h
(211.89 ft³/h)

Working pressure

Max.: 16 bar
(232.06 psi)

Min.: 4 bar
(58.02 psi)

Description

A-DRY 6-600 desiccant adsorption dryer has been designed to separate water moisture from compressed air thus reducing the dew point in the system. A-DRY is a range of products offering our customers a wide array of dried air solutions with volumetric flow rates ranging from 6 Nm3/h to 600 Nm3/h. An innovative new design of A-DRY adsorption driers, developed with consideration of our customers, enables fast and reliable installation, use and servicing. Installation is simple with our ready to use controller while minimising the number of parts and motions required for assembly and disassembly makes servicing fast and reliable. Characteristics operating pressure - 4 to 16 bar operating temp. range - 1,5 to 50 °C pressure dew points - -40 °C (-25 °C / -70 °C) flow rate - 6 to 600 Nm³/h standard colour - RAL 5012 average compressed air consumption - 15-20% Applications • compressed air systems
