Linear piston compressor 5 l/min | DAH 102airelectrically-poweredDC
Add to favorites
Compare this product
Characteristics
- Technology
- linear piston
- Type
- air
- Power source
- electrically-powered, DC, motorless
- Portability
- stationary, mobile
- Lubrication
- oil-free
- Application domain
- industrial, for medical applications
- Applications
- laboratory, process, for OEM, for pharmaceutical applications, for refrigeration technology, laser
- Other characteristics
- low-noise, compact, rugged, energy-saving, low-pressure, light, medium-pressure, electric, small, positive pressure
- Pressure
Min.: 0 bar
(0 psi)Max.: 0.5 bar
(7.25 psi)- Flow
5 l/min
(1.32 us gal/min)
Description

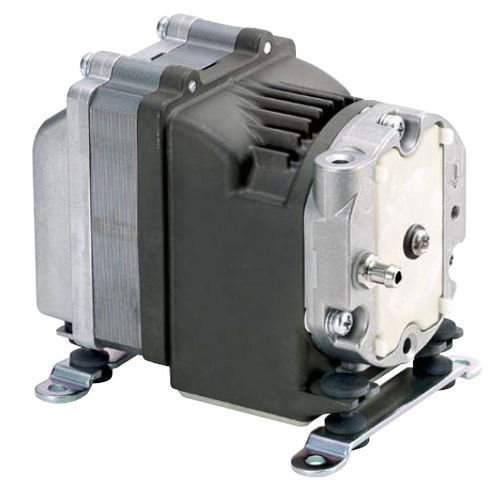

The DAH 102 is a DC pump manufactured by Nitto and can operate continuously on a 12 V or 24 V rated voltage for 10.000 h. Weighing at 0.91kg, the unit is capable of delivering a maximum pressure of 0.5 bar and a rated airflow of 5 l/min. In addition, it is equipped with a 6 mm O.D. hose barb outlet and a class A coil insulation.
