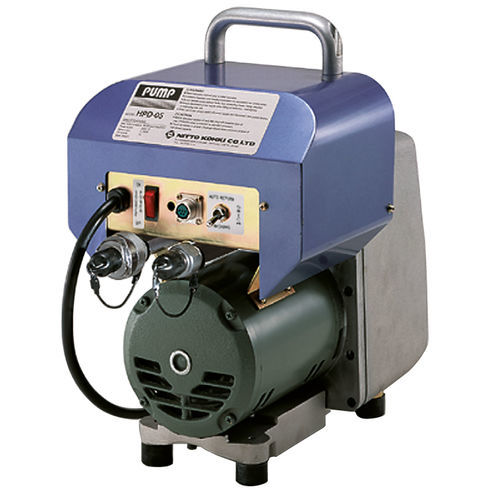

Punching machine hydraulic pump HPD-05pistonwith electric motordouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Operation
- with electric motor
- Applications
- for punching machines
- Other characteristics
- double-acting
- Pressure
69 MPa
- Flow rate
Max.: 1.4 l/min
(0.37 us gal/min)Min.: 0.6 l/min
(0.16 us gal/min)- Weight
32.5 kg
(71.65 lb)- Power
0.4 kW
(0.54 hp)
Description
Inching function as standard.
26 mm dia. holes are possible with optional parts.
Specifications
Power Source (Single Phase): 110 V AC 60 Hz / 220 V AC 50 Hz
Max. Output Pressure: 68.65 MPa
Output (At No load): 1.44 l min / 1.20 l min
Output (At 68.65MPa): 0.66 l min / 0.55 l min
Motor: 0.4 kW 4P
Reservoir Capacity: 4.0 l
Discharge Port: Rc 3/8"
Electro-Magnetic Valve: 4 way 3 position valve
Mass (Weight): 32.5 kg
Catalogs
HS06-1322
2 Pages
