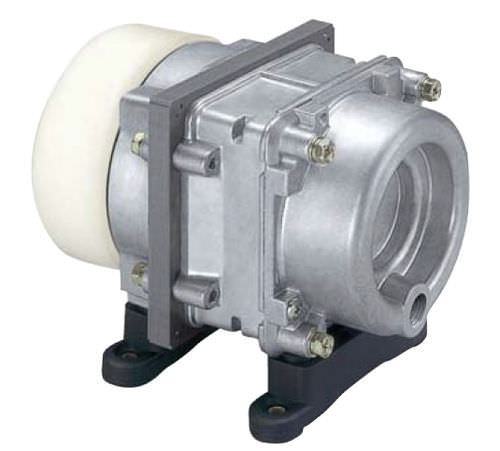

Linear piston compressor 35 l/min | AC 0401A
airelectrically-poweredAC

linear piston compressor
linear piston compressor
linear piston compressor
linear piston compressor
linear piston compressor
linear piston compressor
Add to favorites
Compare this product

Go to the Nitto Kohki Europe website for more information

Characteristics

Technology
linear piston
Type
air
Power source
electrically-powered, AC, motorless
Portability
stationary, mobile
Lubrication
oil-free
Application domain
industrial, for medical applications
Applications
laboratory, process, for OEM, for pharmaceutical applications, for refrigeration technology, laser
Other characteristics
low-noise, compact, rugged, energy-saving, low-pressure, light, medium-pressure, electric, small, positive pressure
Pressure

Max.: 0.35 bar
(5.08 psi)

Min.: 0 bar
(0 psi)

Flow

35 l/min
(9.25 us gal/min)

Power

38 W
(0.05 hp)

Description

Rated Pressure 0.1 bar Rated Airflow 35 l/min Rated Voltage 230 V 120 V Maximum Pressure 0.35 bar Power Consumption 38 W 35 W Rated Frequency 50 Hz 60 Hz Live Expectancy 10.000 h Outlet ISO Rc 1/4 female threaded Duty Cycle Continuous Coil Insulation Class E or its equivalent (JETL) and B for UL-1450 Mounting Dimensions (L x W) 68 x 84 mm Gross Weight 1.9 kg Leadwire Length 200 mm
