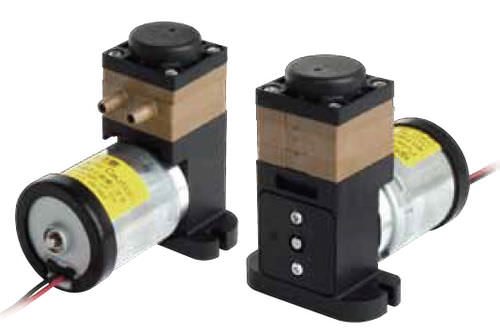

Diaphragm pump DPE-400BL waterfor chemicalsfor natural gas
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water, for chemicals, for natural gas
- Operation
- brushless DC
- Domain
- industrial, for the chemical industry, laboratory, for the cosmetics industry, medical, for the printing industry
- Applications
- sampling, transfer
- Other characteristics
- oil-free, compact, suction, low-noise, OEM, mobile, small, miniature, small-size, non-metal
- Flow
0.4 l/min
(0.10567 us gal/min)- Pressure
Max.: 1 bar
(14.504 psi)Min.: 0 bar
(0 psi)3 bar
(43.511 psi)
Description
The DPE-400BL has a DC Brushless Motor with a need 24 V rated voltage. It has a life expectancy of 5 hours in continuous operation. The flow rate is 400 ml/min, working pressure range is 0-1000 mbar, outlet pressure is 3 bar and self primming pressure is 400 mbar. It has a maximum current of 450 mA, with inlet and outlet measuring 5.4 mm O.D. The motor weighs 230 g.
