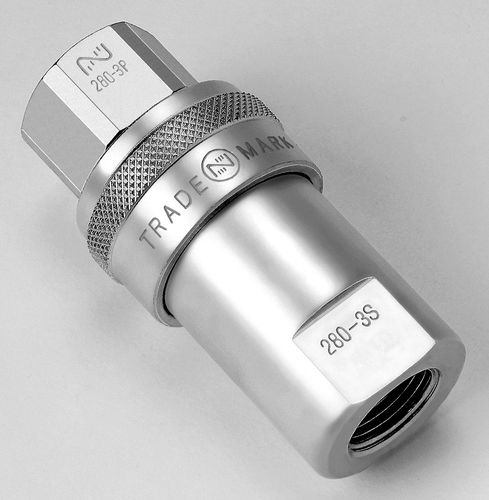

Hydraulic fitting 280 Cupla

screw-insocketsteel

Generic Cupla copes with high pressure lines in hydraulic equipment! Low pressure loss is ideal for hydraulic equipment. • Complys with international standard ISO 7241-1A. • General purpose hydraulic Cuplas with the working pressure up to 27.5~31.5MPa {281~321kgf/cm2}. • Structure keeps pressure loss extremely low, particularly ideal for hydraulic applications requiring high flow rates. • Both socket and plug have built-in automatic shut-off valves to prevent fluid spill out when disconnected. Easy to handle. • Special steel body material is adopted for its excellent strength and additional quenching treatment is done to withstand hydro pressure impacts. • Various end configurations. Specifications Applicable Fluids: Hydraulic Oil Working Pressure: 275 bar / 315 bar Valve Structure: Two-way shut-off Body Material: Steel Seal Material: NBR Size: 1/4" / 3/8" / 1/2" / 3/4" / 1"
