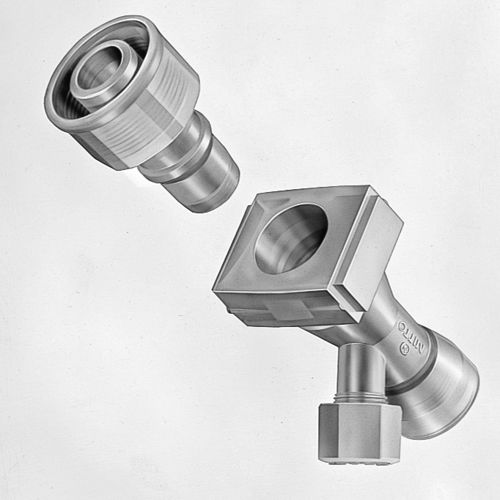

PFA fitting Semicon Cupla SCF
for gasquicksocket

PFA fitting - Semicon Cupla SCF - Nitto Kohki Europe - for gas / quick / socket
PFA fitting - Semicon Cupla SCF - Nitto Kohki Europe - for gas / quick / socket
PFA fitting - Semicon Cupla SCF - Nitto Kohki Europe - for gas / quick / socket - image - 2
PFA fitting - Semicon Cupla SCF - Nitto Kohki Europe - for gas / quick / socket - image - 3
PFA fitting - Semicon Cupla SCF - Nitto Kohki Europe - for gas / quick / socket - image - 4
PFA fitting - Semicon Cupla SCF - Nitto Kohki Europe - for gas / quick / socket - image - 5
PFA fitting - Semicon Cupla SCF - Nitto Kohki Europe - for gas / quick / socket - image - 6
PFA fitting - Semicon Cupla SCF - Nitto Kohki Europe - for gas / quick / socket - image - 7
Add to favorites
Compare this product


Characteristics

Applications
for gas
Attachment
quick, socket
Material
PFA
Gender
female
Other characteristics
with O-ring, chemically resistant, with shut-off valve
Diameter

0.25 in, 0.38 in

Operating pressure

2 bar
(29.01 psi)

Description

All plastic model. Fluorine contained resin (PFA) body is injection molded. • All parts made of fluorine contained resin. O-rings in particular are FEP-coated fluoro-rubber with excellent chemical resistance and no rubber elution. • Unique new techniques such as “injection molding”, “tube connect system” and “nut type plug mount design” are used to prevent the generation of particles, incessant headache for semiconductor parts manufacturers. • To connect with a plug, just push the socket on to it. Disconnection is done in simple and one-handed button operation. • Unique “double-lock mechanism” prevents accidental disconnection of socket and plug. • Branched tube port improves operability and reduces required piping space. • Plugs come with a dust cap. Specifications Applicable Fluids: Air / Water / High Purity Chemicals / Gas Working Pressure: 2 bar Valve Structure: Two-way shut-off Body Material: Plastic Seal Material: FEP-coated / FKM Size: 1/4" / 3/8" / Others
