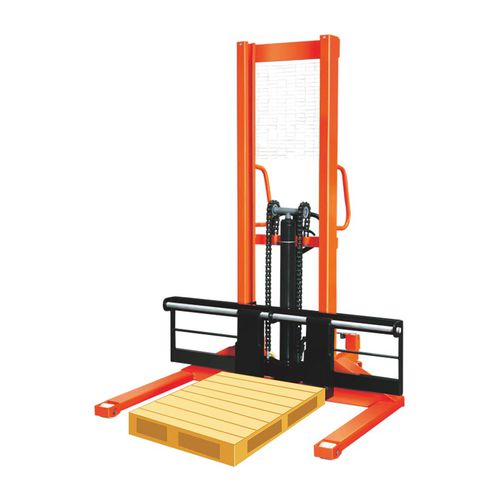

Manual stacker truck CTY-EW

straddle

CTY-EW Straddle Leg Hand Stacker Application Specially designed straddle legs and counter weight base allow the stacker to be used to enter special size cargos where base legs could interfere,and at the same time improve the stability . Parameter Model - CTY-EW[1400] Rated lifting capacity(kg) - 1000 Max.lifting height(mm) - 1600 Lowered height of forks(mm) - 90 fork length(mm) - 900 Adjustable width of forks(mm) - 340-1490 Lifting speed(mm/s) - 20 Lowering speed(mm/s) - Controllable Outer width of front legs(mm) - 1400 Operation power of crank(kg) - 24 Front wheel size(mm) - φ74×52 Rear wheel size(mm) - φ180×50 Overall size(mm) - 1390×1500×2040 Truck weight(kg) - 210
