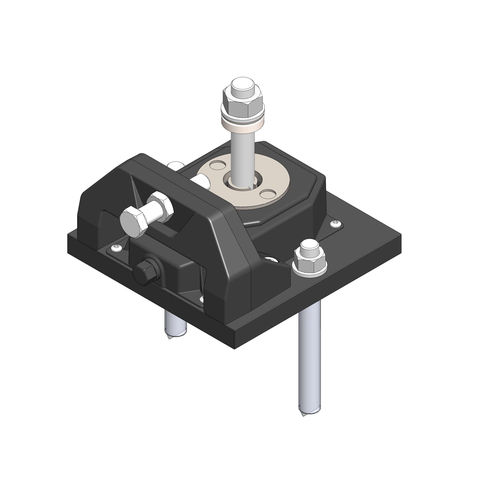

Drawing number
3515-01
Dimension bolting
M20x100
Kind of floor bolting
2 x adhesive anchor M16 x 175
Alternativ floor bolting
2 x M20 x 215
Spacing washer to push-in cam
see accessories
Fine adjusting range
7 mm
Maximum adjustment load
150 kN
Maximum torque
60 Nm
Torque per 10 kN
4 Nm
Hexagonal wrench for adjustment
17 mm
Height adjustment per adjusting screw turn
0,375 mm
Flexibility/rigidity
5000 N/µm
Weight of wedge
15,6 kg
