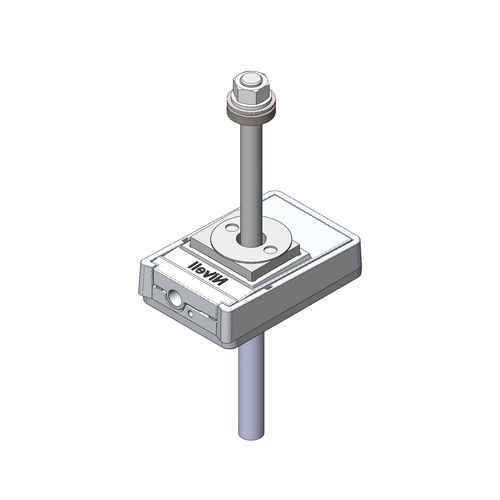

Precision leveling wedge GN35+TS15 M16x320
with screw on bolt

Precision leveling wedge - GN35+TS15 M16x320 - NIVELL - with screw on bolt
Precision leveling wedge - GN35+TS15 M16x320 - NIVELL - with screw on bolt
Add to favorites
Compare this product


Characteristics

Applications
precision
Other characteristics
with screw on bolt

Description

Drawing number 2023-05 Dimension floor bolting M16 x 320 Kind of floor bolting Adhesive anchor Alternativ floor bolting M20 x 320 Spacing washer to push-in cam see accessories Fine adjusting range 7 mm Maximum adjustment load 70 kN Maximum torque 35 Nm Torque per 10 kN 5 Nm Hexagonal Allen key for adjustment SW 10 Height adjustment per adjusting screw turn 0,275 mm Weight of wedge 2,0 kg
