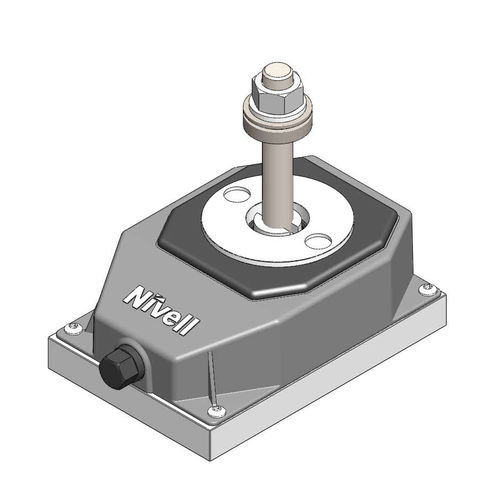

Precision leveling wedge DKP90-2 M16x95 (120)

adjustablewith screw on bolt

Drawing number 3532-01 Dimension bolting M16 x 95 (120) Alternativ floor bolting M20 Spacing washer to push-in cam see accessories Fine adjusting range 7 mm Maximum adjustment load 150 kN Maximum torque 60 Nm Torque per 10 kN 4 Nm Hexagonal Allen key for adjustment 17 mm Height adjustment per adjusting screw turn 0,375 mm Vibration protection, nitril vulcanised on 2 mm 90° Shore Weight of wedge 7,1 kg
