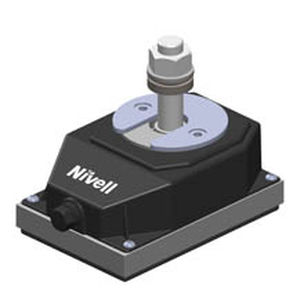

Precision leveling wedge DKS80-2 M20x75 (100)

adjustablewith screw on bolt

Drawing number 3545-04 Dimension bolting M20 x 75 (100) Alternativ floor bolting M16 Spacing washer to push-in cam see accessories Fine adjusting range 7 mm Maximum adjustment load 150 kN Maximum torque 60 Nm Torque per 10 kN 4 Nm Hexagonal Allen key for adjustment 17 mm Height adjustment per adjusting screw turn 0,375 mm Vibration protection, nitril vulcanised on layer 80° Shore Weight of wedge 7,3 kg
